Thailand (single-zone, CEM)

A single-zone (Thailand) capacity-expansion run with 13 cascading Mekong-basin reservoirs – Bhumibol, Sirikit, Srinagarind, Vajiralongkorn, Rajjaprabha, etc. Migrated from the v1.4-era xlsx dataset to the v1.9 long-format CSV schema; all per-station reservoir physics (head, tailrace-discharge curves, forebay-volume curves) preserved.

Run the solve from the command line (the dataset is large – 1M+ variables – so a full solve takes ~30 min):

cd examples/thailand
python run.py

The cells below explore the dataset shape and read the result NetCDF. They run fast (no solve).

import pathlib

# Walk up to find the example dir (containing config.json + input/).
this_dir = pathlib.Path.cwd()
while not (this_dir / 'config.json').exists() or not (this_dir / 'input').is_dir():
    if this_dir == this_dir.parent:
        raise RuntimeError(
            'Could not locate the example dir; run from inside '
            'examples/thailand/.'
        )
    this_dir = this_dir.parent
INPUT = this_dir / 'input'
print(f'Example dir: {this_dir}')
print(f'Input:       {INPUT}')

Example dir: /Users/energy/01-doing/PREP-SHOT-tutorial/PREP-SHOT/examples/thailand
Input:       /Users/energy/01-doing/PREP-SHOT-tutorial/PREP-SHOT/examples/thailand/input

Existing fleet (2023)

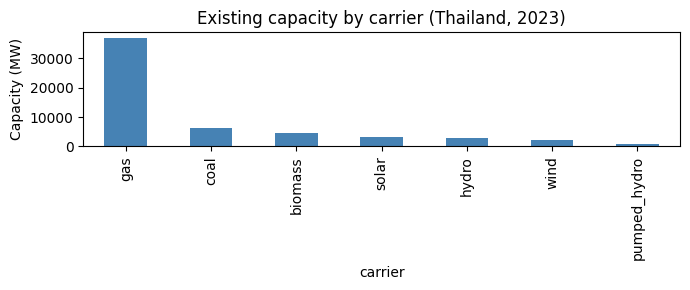

Thailand’s installed capacity in the start year, with Large Hydropower allocated across the 13 reservoir techs by their rated capacity.

import pandas as pd
import matplotlib.pyplot as plt
%matplotlib inline

fleet = pd.read_csv(INPUT / 'tech_existing.csv')
registry = pd.read_csv(INPUT / 'tech_registry.csv')
merged = fleet.merge(registry[['tech', 'carrier']], on='tech')
by_carrier = merged.groupby('carrier')['capacity'].sum().sort_values(ascending=False)

fig, ax = plt.subplots(figsize=(7, 3))
by_carrier.plot.bar(ax=ax, color='steelblue')
ax.set_ylabel('Capacity (MW)')
ax.set_title('Existing capacity by carrier (Thailand, 2023)')
fig.tight_layout()
plt.show()
by_carrier.round(0)

carrier
gas             36993.0
coal             6138.0
biomass          4705.0
solar            3186.0
hydro            2925.0
wind             2092.0
pumped_hydro     1000.0
Name: capacity, dtype: float64

Per-station hydropower characteristics

Each reservoir is modeled with its own head, capacity, and operational bounds – the feature that distinguishes PREP-SHOT from PyPSA / GenX.

head = pd.read_csv(INPUT / 'reservoir_head.csv')
cap  = pd.read_csv(INPUT / 'reservoir_capacity_max.csv')
merged = (
    head[['tech', 'head']]
    .merge(cap[['tech', 'capacity_max']], on='tech')
    .sort_values('capacity_max', ascending=False)
)
merged.round(1)

	tech	head	capacity_max
0	Bhumibol	154.0	779.2
10	Srinagarind	140.0	720.0
1	Sirikit	113.6	500.0
12	Vajiralongkorn	92.0	300.0
9	Rajjaprabha	94.0	240.0
4	Pak_Mun	17.0	136.0
7	Bang_Lang	85.0	84.0
2	Chulabhorn	70.0	40.0
11	Tha_Thung_Na	30.0	39.0
5	Siridhorn	42.0	36.0
6	Ubol_Ratana	32.0	25.2
8	Kaeng_Krachan	58.0	19.0
3	Nam_Pung	41.0	6.3

Inspect a solve (after running python run.py)

Once you’ve run the CLI command above and it has written output/baseline.nc, the cell below opens it. Skip if you haven’t run the solve yet.

import xarray as xr

nc_path = this_dir / 'output' / 'baseline.nc'
if not nc_path.exists():
    print(f'No NetCDF at {nc_path}. Run `python run.py` from {this_dir} first.')
else:
    # Try netCDF4 then h5netcdf -- the .nc file is netCDF4-classic and
    # may not be readable by every backend on every platform.
    ds = None
    for engine in ('netcdf4', 'h5netcdf'):
        try:
            ds = xr.open_dataset(nc_path, engine=engine)
            break
        except Exception as exc:
            last_err = exc
    if ds is None:
        print(f'Could not open {nc_path} (last error: {last_err}). '
              f'Falling back to baseline.xlsx in the cells below.')
    else:
        print(f'Total cost (NPV): ${float(ds.cost):,.0f}')
        print(f'Variables: {sorted(ds.data_vars)[:6]} ...')

Total cost (NPV): $7,317,497,191
Variables: ['carbon', 'carbon_breakdown', 'charge', 'cost', 'cost_fix', 'cost_fix_breakdown'] ...

Common plots from a solved baseline

Once python run.py writes output/baseline.nc (and baseline.xlsx), the cells below produce four standard diagnostics:

1. Installed capacity by technology

2. Annual generation mix by technology

3. Daily dispatch profile (stacked area over the year)

4. Cost breakdown (NPV decomposition)

The cells read from the .xlsx mirror so you don’t need a working netCDF4 build to view results.

OUT = this_dir / 'output' / 'baseline.xlsx'
if not OUT.exists():
    raise FileNotFoundError(
        f'No solved baseline at {OUT}. Run `python run.py` from {this_dir} first.'
    )
xl = pd.ExcelFile(OUT)
print('Sheets:', xl.sheet_names[:8], '...')

Sheets: ['trans_export', 'gen', 'install', 'carbon', 'charge', 'cost_var_breakdown', 'cost_fix_breakdown', 'cost_newtech_breakdown'] ...

Installed capacity

Single-year, single-zone, so capacity reduces to one horizontal bar per technology.

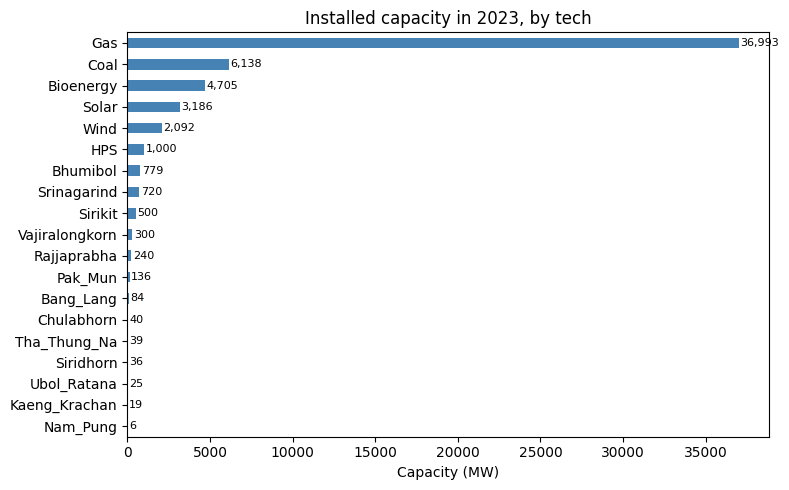

inst = pd.read_excel(xl, 'install')
by_tech = (inst.groupby('tech')['install']
           .sum().sort_values(ascending=True))

fig, ax = plt.subplots(figsize=(8, 5))
by_tech.plot.barh(ax=ax, color='steelblue')
ax.set_xlabel('Capacity (MW)')
ax.set_ylabel('')
ax.set_title('Installed capacity in 2023, by tech')
for i, v in enumerate(by_tech.values):
    ax.text(v + 100, i, f'{v:,.0f}', va='center', fontsize=8)
plt.tight_layout()
plt.show()

Annual generation mix

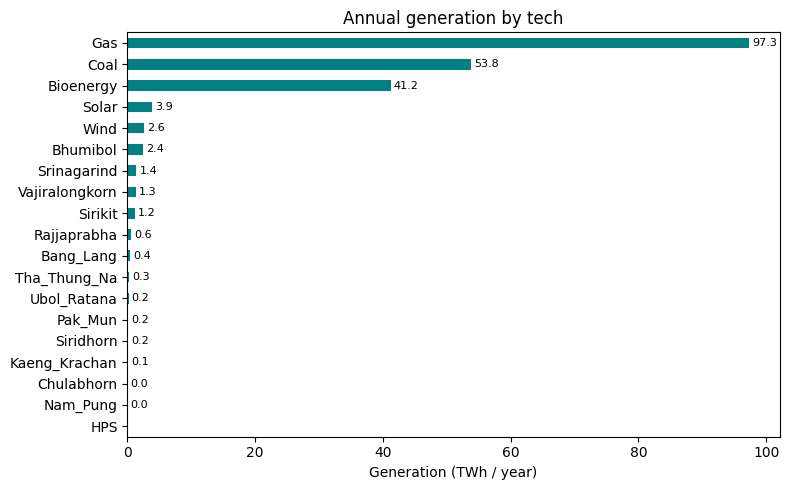

Annual TWh per technology. Note how much of the load is met by gas and coal — the dataset has no carbon cap, so the dispatch is driven purely by variable cost.

gen = pd.read_excel(xl, 'gen')
by_tech_twh = (gen.groupby('tech')['gen']
               .sum().div(1e6).sort_values(ascending=True))

fig, ax = plt.subplots(figsize=(8, 5))
by_tech_twh.plot.barh(ax=ax, color='teal')
ax.set_xlabel('Generation (TWh / year)')
ax.set_ylabel('')
ax.set_title('Annual generation by tech')
for i, v in enumerate(by_tech_twh.values):
    if v > 0.01:
        ax.text(v + 0.5, i, f'{v:,.1f}', va='center', fontsize=8)
plt.tight_layout()
plt.show()

Daily dispatch profile

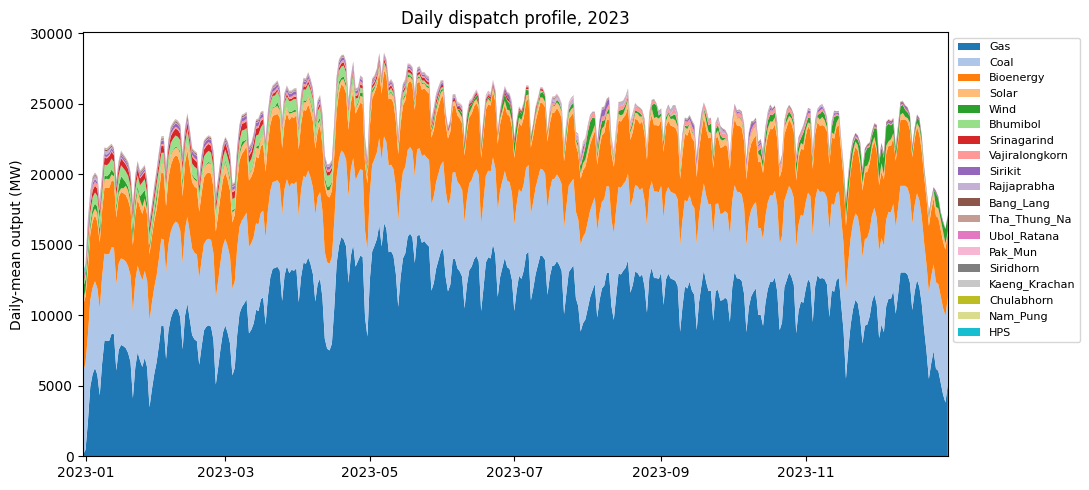

Aggregate hourly generation into daily means and stack by technology to see seasonal dynamics. Hydro output rises with the monsoon; gas plays the swing role; renewables are roughly flat.

# gen[hour=1..8760, tech] -> reshape to (day, tech) and stack.
gen_pivot = gen.pivot_table(index='hour', columns='tech',
                            values='gen', aggfunc='sum').fillna(0)
gen_pivot.index = pd.to_datetime('2022-12-31') + pd.to_timedelta(gen_pivot.index, unit='h')
daily = gen_pivot.resample('D').mean()  # MW (daily-mean output)

tech_order = (gen_pivot.sum(axis=0).sort_values(ascending=False).index.tolist())
daily = daily[tech_order]

fig, ax = plt.subplots(figsize=(11, 5))
ax.stackplot(daily.index, daily.T.values, labels=tech_order,
             colors=plt.cm.tab20.colors)
ax.set_ylabel('Daily-mean output (MW)')
ax.set_title('Daily dispatch profile, 2023')
ax.legend(loc='upper left', bbox_to_anchor=(1.0, 1.0), fontsize=8, ncol=1)
ax.margins(x=0)
plt.tight_layout()
plt.show()

Cost breakdown

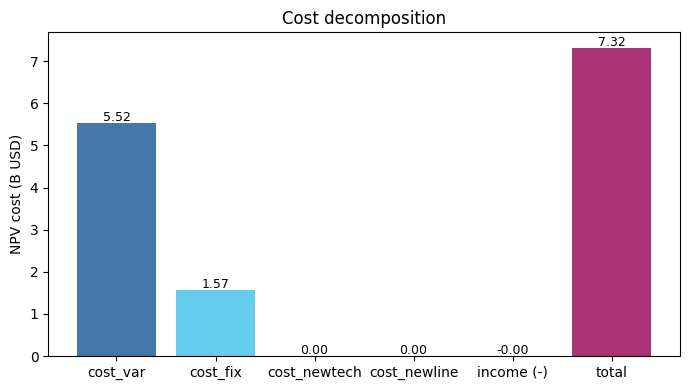

All costs are NPV-discounted to the start year. With no expansion (carbon cap is inf in this scenario), cost_newtech and cost_newline are 0 — the model only pays operating costs on the existing fleet.

components = ['cost_var', 'cost_fix', 'cost_newtech', 'cost_newline']
values = [pd.read_excel(xl, c).iloc[0, 1] / 1e9 for c in components]
income = pd.read_excel(xl, 'income').iloc[0, 1] / 1e9
total = pd.read_excel(xl, 'cost').iloc[0, 1] / 1e9

labels = components + ['income (-)', 'total']
vals = values + [-income, total]
colors = ['#4477aa', '#66ccee', '#228833', '#ccbb44',
          '#ee6677', '#aa3377']

fig, ax = plt.subplots(figsize=(7, 4))
ax.bar(labels, vals, color=colors)
for i, v in enumerate(vals):
    ax.text(i, v + 0.05, f'{v:,.2f}', ha='center', fontsize=9)
ax.set_ylabel('NPV cost (B USD)')
ax.set_title('Cost decomposition')
ax.axhline(0, color='black', linewidth=0.5)
plt.tight_layout()
plt.show()

Where to next

• Quickstart notebook – the canonical 5-minute walkthrough on a smaller 3-zone synthetic dataset.

• Southeast Asia notebook – a 5-country regional case with 57 reservoirs.

• Model Inputs/Outputs – every file in input/ documented.
