PJM 5-bus benchmark¶

PREP-SHOT validation against the canonical Hogan / PJM 5-bus DC-OPF example. This is the smallest and most-cited benchmark for nodal LMP / DC-OPF correctness in power-system modeling: 5 buses, 5 generators, 6 lines, single hour. The dataset is reproduced verbatim as MATPOWER’s case5, which gives us a published runopf result to compare against to the dollar.

What this notebook does:

Documents the data source and reference numbers.
Shows the topology and generator merit order.
Runs PREP-SHOT’s PCM driver on the dataset.
Validates total cost, per-tech dispatch, and per-bus LMP against MATPOWER’s published values.

Total wall time: ~1 second. Test in `tests/test_pjm5_benchmark.py <../../tests/test_pjm5_benchmark.py>`__ wraps the validation as a regression.

1. Data source and references¶

Primary citation. Hogan, W. W. (2002). Financial Transmission Rights, Locational Marginal Prices, and the Theory of Spot Pricing. The 5-bus example originated as a teaching aid for FERC and PJM training material; numbers below are the canonical version reproduced in MATPOWER.

Dataset. `MATPOWER/data/case5.m <https://github.com/MATPOWER/matpower/blob/master/data/case5.m>`__ – single-hour, lossless DC OPF, 100 MVA base.

Reference results. Running MATLAB’s runopf(case5) (or rundcopf for the lossless version) yields:

Quantity	Value
Total system cost	$17,479.89 / hour
Alta dispatch (bus 1)	40 MW (at upper bound)
Park City dispatch (bus 1)	170 MW (at upper bound)
Solitude dispatch (bus 3)	323.49 MW (marginal)
Sundance dispatch (bus 4)	0 MW (most expensive)
Brighton dispatch (bus 5)	466.51 MW (marginal)
LMP at bus 3	$30 / MWh
LMP at bus 5	$10 / MWh
Binding constraint	Line 4-5 at 240 MW

The two anchor LMPs ($30 at bus 3, $10 at bus 5) match exactly because they’re set by a marginal generator’s variable-OM cost. The bus 1/2/4 LMPs depend on shift-factor weighting that varies with the DC-OPF formulation choice (reference bus, susceptance normalization), so PREP-SHOT’s numbers there will differ by a few $/MWh.

2. Topology and merit order¶

[1]:

import pathlib
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np

this_dir = pathlib.Path.cwd()
while this_dir.name != 'pjm5':
    if this_dir == this_dir.parent:
        raise RuntimeError('run from inside examples/pjm5/')
    this_dir = this_dir.parent
INP = this_dir / 'input'

fleet = pd.read_csv(INP / 'tech_existing.csv')
varom = pd.read_csv(INP / 'tech_variable_OM_cost.csv')
lines = pd.read_csv(INP / 'transmission_existing.csv')
demand = pd.read_csv(INP / 'demand.csv')

print('Generators (= techs):')
merit = fleet.merge(varom[['tech', 'value']].rename(columns={'value': 'usd_per_mwh'}), on='tech')
print(merit[['tech', 'zone', 'capacity', 'usd_per_mwh']].sort_values('usd_per_mwh').to_string(index=False))
print(f'\nTotal Pmax: {fleet.capacity.sum():.0f} MW')
print(f'\nDemand: {demand.value.sum():.0f} MW (sum across buses at hour 1)')

Generators (= techs):
    tech zone  capacity  usd_per_mwh
Brighton bus5     600.0         10.0
    Alta bus1      40.0         14.0
ParkCity bus1     170.0         15.0
Solitude bus3     520.0         30.0
Sundance bus4     200.0         40.0

Total Pmax: 1530 MW

Demand: 1000 MW (sum across buses at hour 1)

[2]:

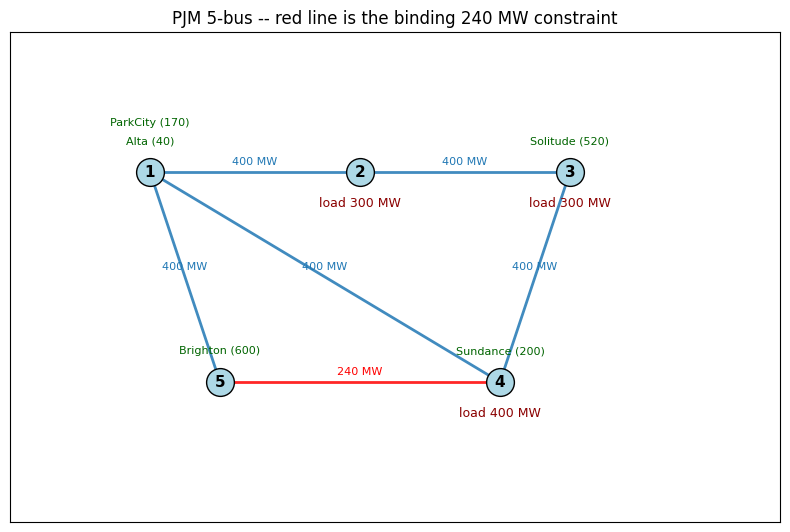

# 5-bus network sketch.  Bus positions chosen to match Hogan's
# canonical layout (cheap gen at bus 5 in the south, load at
# 2/3/4 in the centre, expensive gen at bus 1 in the north).
BUS_XY = {
    'bus1': (1.0, 2.0),
    'bus2': (2.5, 2.0),
    'bus3': (4.0, 2.0),
    'bus4': (3.5, 0.5),
    'bus5': (1.5, 0.5),
}
loads = dict(zip(demand['zone'], demand['value']))
fig, ax = plt.subplots(figsize=(8, 6))
# Lines (one direction only -- the table has both directions).
seen = set()
for _, ln in lines.iterrows():
    a, b = sorted([ln['zone1'], ln['zone2']])
    if (a, b) in seen:
        continue
    seen.add((a, b))
    x1, y1 = BUS_XY[a]
    x2, y2 = BUS_XY[b]
    color = 'red' if ln['value'] == 240 else '#1f77b4'
    ax.plot([x1, x2], [y1, y2], color=color, linewidth=2, alpha=0.85)
    ax.text((x1+x2)/2, (y1+y2)/2 + 0.05, f"{int(ln['value'])} MW",
            ha='center', fontsize=8, color=color)
for z, (x, y) in BUS_XY.items():
    load = loads.get(z, 0)
    gens_here = fleet[fleet['zone'] == z]
    ax.scatter(x, y, s=400, color='lightblue', edgecolor='black', zorder=3)
    ax.text(x, y, z[-1], ha='center', va='center', fontsize=11,
            fontweight='bold', zorder=4)
    if load > 0:
        ax.text(x, y - 0.25, f'load {int(load)} MW', ha='center', fontsize=9,
                color='darkred')
    for i, g in enumerate(gens_here.itertuples()):
        ax.text(x, y + 0.20 + i*0.13, f"{g.tech} ({int(g.capacity)})",
                ha='center', fontsize=8, color='darkgreen')
ax.set_xlim(0, 5.5); ax.set_ylim(-0.5, 3)
ax.set_aspect('equal')
ax.set_xticks([]); ax.set_yticks([])
ax.set_title('PJM 5-bus -- red line is the binding 240 MW constraint')
plt.tight_layout(); plt.show()

3. Run PCM¶

The single-hour DC OPF is wrapped behind PREP-SHOT’s PCM driver. Below we call it programmatically; the equivalent shell invocation is:

cd examples/pjm5
python -m prepshot.pcm . --year 2020 --horizon 1 --step 1 --total-h 1

[3]:

import os, sys
sys.argv = [sys.argv[0]]
os.chdir(this_dir)
from prepshot.set_up import initialize_environment
from prepshot.pcm import (
    _build_window_params, _override_existing_fleet,
    load_fixed_capacity, _extract_window_dispatch,
)
from prepshot.model import create_model
from prepshot.solver import solve_model

full_params = initialize_environment({
    'filepath': str(this_dir),
    'config_filename': str(this_dir / 'config.json'),
    'params_filename': str(this_dir / 'params.json'),
})
wh = list(full_params['hour'])
win = _build_window_params(full_params, 2020, wh,
                           state={'hydro_storage': {}, 'battery_storage': {}})
_override_existing_fleet(win, load_fixed_capacity(
    pathlib.Path('input/capacity_pcm.csv'), 2020, this_dir))
m = create_model(win)
assert solve_model(m, win)
out = _extract_window_dispatch(m, wh, 2020)
total_cost = float(m.get_value(m.cost))
print(f'Solved.  Total cost: ${total_cost:,.2f}')

2026-05-08 12:30:23 INFO: Set parameter solver to value highs
2026-05-08 12:30:23 INFO: Set parameter input folder to value input
2026-05-08 12:30:23 INFO: Set parameter output_filename to value baseline.nc
2026-05-08 12:30:23 INFO: Set parameter time_length to value 1
2026-05-08 12:30:23 INFO: Start running 'create_model'
2026-05-08 12:30:23 INFO: Loaded HiGHS library: /Users/energy/miniconda3/envs/prep-shot/lib/python3.9/site-packages/highsbox/highs_dist/lib/libhighs.dylib
2026-05-08 12:30:23 INFO: Loaded highs library automatically.
2026-05-08 12:30:23 INFO: Finished 'create_model' in 0.00 seds
2026-05-08 12:30:23 INFO: Start running 'solve_model'
2026-05-08 12:30:23 INFO: Finished 'solve_model' in 0.00 seds

Running HiGHS 1.7.0 (git hash: 50670fd): Copyright (c) 2024 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 1 |values| in [0, 0] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [0, 0] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [0, 0] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [0, 0] less than or equal to 1e-09: ignored
Hessian has dimension 64 but no nonzeros, so is ignored
Coefficient ranges:
  Matrix [1e+00, 2e+04]
  Cost   [1e+01, 5e+07]
  Bound  [3e+00, 3e+00]
  RHS    [4e+01, 6e+02]
Presolving model
11 rows, 21 cols, 50 nonzeros  0s
7 rows, 17 cols, 43 nonzeros  0s
6 rows, 10 cols, 21 nonzeros  0s
4 rows, 8 cols, 16 nonzeros  0s
4 rows, 8 cols, 16 nonzeros  0s
Presolve : Reductions: rows 4(-69); columns 8(-56); elements 16(-128)
Solving the presolved LP
Using EKK dual simplex solver - serial
  Iteration        Objective     Infeasibilities num(sum)
          0    -1.1407344983e-04 Pr: 4(2648.62) 0s
          5     1.7479896925e+04 Pr: 0(0) 0s
Solving the original LP from the solution after postsolve
Model   status      : Optimal
Simplex   iterations: 5
Objective value     :  1.7479896925e+04
HiGHS run time      :          0.00
Solved.  Total cost: $17,479.90

4. Validation¶

[4]:

REFERENCE = {
    'total_cost': 17479.89,
    'dispatch': {'Alta': 40.0, 'ParkCity': 170.0, 'Solitude': 323.49,
                 'Sundance': 0.0, 'Brighton': 466.51},
    'lmp_anchors': {'bus3': 30.0, 'bus5': 10.0},
}
gen = pd.DataFrame(out['gen'])
lmp = pd.DataFrame(out['lmp'])
actual_disp = gen.groupby('tech')['value'].sum().to_dict()
actual_lmp = lmp.groupby('zone')['value'].first().to_dict()

print(f"Total cost:       PREP-SHOT ${total_cost:>10,.2f}   reference ${REFERENCE['total_cost']:>10,.2f}")
print(f"  diff = ${total_cost - REFERENCE['total_cost']:>+8.2f}\n")
print('Per-tech dispatch (MW):')
print(f"  {'tech':<10}{'PREP-SHOT':>11}  {'reference':>11}  {'diff':>7}")
for tech, ref in REFERENCE['dispatch'].items():
    a = actual_disp.get(tech, 0.0)
    print(f'  {tech:<10}{a:>11.2f}  {ref:>11.2f}  {a-ref:>+7.2f}')
print()
print('Per-bus LMP ($/MWh):')
for bus, val in sorted(actual_lmp.items()):
    ref = REFERENCE['lmp_anchors'].get(bus)
    suffix = f'(reference ${ref}, anchor)' if ref is not None else '(formulation-dependent)'
    print(f'  {bus}:  ${val:>6.2f}  {suffix}')

Total cost:       PREP-SHOT $ 17,479.90   reference $ 17,479.89
  diff = $   +0.01

Per-tech dispatch (MW):
  tech        PREP-SHOT    reference     diff
  Alta            40.00        40.00    +0.00
  ParkCity       170.00       170.00    +0.00
  Solitude       323.49       323.49    +0.00
  Sundance         0.00         0.00    +0.00
  Brighton       466.51       466.51    -0.00

Per-bus LMP ($/MWh):
  bus1:  $ 16.98  (formulation-dependent)
  bus2:  $ 26.38  (formulation-dependent)
  bus3:  $ 30.00  (reference $30.0, anchor)
  bus4:  $ 39.94  (formulation-dependent)
  bus5:  $ 10.00  (reference $10.0, anchor)

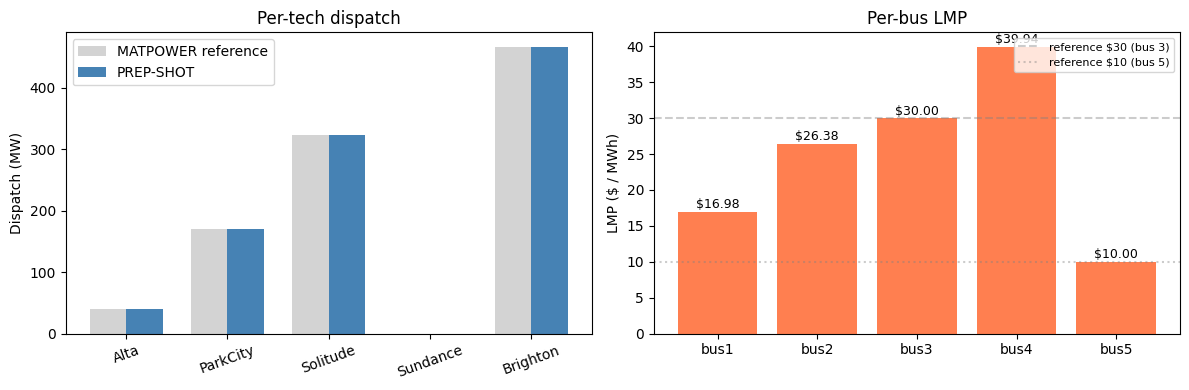

[5]:

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
techs = list(REFERENCE['dispatch'].keys())
ref_disp = [REFERENCE['dispatch'][t] for t in techs]
act_disp = [actual_disp.get(t, 0) for t in techs]
x = np.arange(len(techs))
axes[0].bar(x - 0.18, ref_disp, width=0.36, label='MATPOWER reference', color='lightgray')
axes[0].bar(x + 0.18, act_disp, width=0.36, label='PREP-SHOT', color='steelblue')
axes[0].set_xticks(x); axes[0].set_xticklabels(techs, rotation=20)
axes[0].set_ylabel('Dispatch (MW)'); axes[0].legend(); axes[0].set_title('Per-tech dispatch')
buses = sorted(actual_lmp.keys())
axes[1].bar(buses, [actual_lmp[b] for b in buses], color='coral')
for b, v in actual_lmp.items():
    axes[1].text(b, v + 0.5, f'${v:.2f}', ha='center', fontsize=9)
axes[1].set_ylabel('LMP ($ / MWh)'); axes[1].set_title('Per-bus LMP')
axes[1].axhline(30, color='gray', linestyle='--', alpha=0.4, label='reference $30 (bus 3)')
axes[1].axhline(10, color='gray', linestyle=':', alpha=0.4, label='reference $10 (bus 5)')
axes[1].legend(loc='upper right', fontsize=8)
plt.tight_layout(); plt.show()

5. Notes¶

Why bus 1 / 2 / 4 LMPs differ. The DC-OPF dual is unique up to a per-MWh additive constant tied to the reference bus. Different formulations (different reference, different susceptance normalization) give different bus-level LMPs but the same anchor LMPs ($30 at bus 3, $10 at bus 5) and the same total cost. PREP-SHOT uses bus 1 as reference.
Quadratic costs dropped. MATPOWER’s case5.m defines linear costs (gencost polynomial form 2 with degree 2 = quadratic, but the c2 coefficients for these gens are zero). The five generators are pure linear-cost units, so PREP-SHOT’s tech_variable_OM_cost representation is exact.
Single-hour limitation. This is a snapshot dispatch – there’s no inter-period state, so storage / hydro / UC don’t apply.
